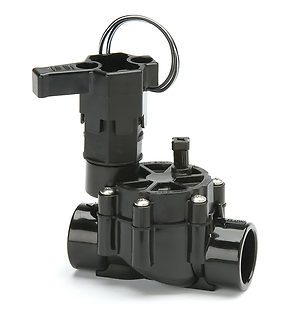

Description
Rain Bird manufactures only the highest quality valves. Use DV/DVF series valves in locations where the use of a separate pressure vacuum breaker (PVB) or a double-check valve is required by city codes to protect against back flow. Check your local city codes to determine what type of valves are required.
Additional features:
All of our valves work with any standard sprinkler timer.
Buna-N diaphragm with self-cleaning 90 mesh (200 micron) pilot water filter and captive spring.
Operates in low-flow and Xerigation® applications when the RBY filter is installed upstream.
1.25 in. (3,2 cm) stainless steel phillips head screws.
Accepts latching solenoid for use with Rain Bird battery-operated controllers.
1 in. (26/34) Slip-by-Slip (SS) configuration for low cost, solvent-weld installations
Double-filtered pilot-flow design for maximum reliability
Balanced-pressure diaphragm for long life
External bleed to manually flush system of dirt and debris during installation and system start-up
Internal bleed for spray-free manual operation
Energy-efficient, low-power encapsulated solenoid with captured plunger and 90-mesh (200 micron) solenoid filter
* Solenoid handle is not included *
| 100DVSS |
| 1 in |
| Inline |
| Plastic |
| Slip x Slip |
| DV/DVF |
| Up to 110° F (43° C) |
| Height: 4 1/2″ (11,4 cm) Width: 3 1/3″ (8,4 cm) Length: 4 3/8″ (11,1 cm) |
| 24 VAC 50/60 Hz (cycles per second) solenoid power requirement: 0.30 A (7.2 VA) inrush current; 0.23 A (5.5 VA) holding current Solenoid coil resistance: 38 Ohms |
| 0.2 to 40 GPM (0,05 to 9,08 m3/h; 0,01 to 2,52 l/s). For flows below 3 GPM (0,75 m3/h; 0,21 l/s) or any Xerigation® application, use a 200 mesh filter installed upstream. |
| 15 to 150 psi (1,0 to 10,4 bar) |
